37 Degree Flare Fittings »Tee Fittings » Female Run Tee |

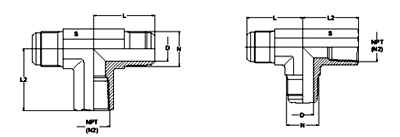

| Female Run Tee | |||||||||||
| TUBE OD | THREAD UN / UNF | THREAD NPT/NPTF | S | L | L2 | D | PART NO. | ||||
| mm | inch | N | N2 | mm | mm | mm | mm | ||||
| 6 | 1/4 | 7/16 -20 | 1/8-27 | 14 | 27.4 | 16.8 | 4.4 | 4-2F-FRTN | |||
| 6 | 1/4 | 7/16-20 | 1/4-18 | 19 | 31 | 22.3 | 4.4 | 4F-FRTN | |||
| 8 | 5/16 | 1/2 -20 | 1/8-27 | 14 | 27.4 | 16.8 | 6 | 5-2F-FRTN | |||
| 8 | 5/16 | 1/2-20 | 1/4-18 | 19 | 28.7 | 22.3 | 6 | 5-4F-FRTN | |||
| 10 | 3/8 | 9/16 -18 | 1/8-27 | 14 | 31.2 | 17 | 7.5 | 6-2F-FRTN | |||
| 10 | 3/8 | 9/16-18 | 1/4-18 | 19 | 31.2 | 22.3 | 7.5 | 6-4F-FRTN | |||
| 10 | 3/8 | 9/16 -18 | 3/8-18 | 22 | 33.3 | 25.9 | 7.5 | 6F-FRTN | |||
| 12 | 1/2 | 3/4-16 | 1/4-18 | 19 | 36.1 | 25.6 | 9.9 | 8-4F-FRTN | |||
| 12 | 1/2 | 3/4 -16 | 3/8-18 | 22 | 36.1 | 25.9 | 9.9 | 8-6F-FRTN | |||
| 12 | 1/2 | 3/4-16 | 1/2-14 | 27 | 38.7 | 31.2 | 9.9 | 8F-FRTN | |||
| 14/15/16 | 5/8 | 7/8 -14 | 1/2-14 | 27 | 41.7 | 31.2 | 12.3 | 10-8F-FRTN | |||
| 18/20 | 3/4 | 11/16 -12 | 1/2-14 | 27 | 48 | 34.3 | 15.5 | 12-8F-FRTN | |||
| 18/20 | 3/4 | 1 1/16 -12 | 3/4-14 | 33 | 48 | 34.5 | 15.5 | 12F-FRTN | |||
| 25 | 1 | 15/16 -12 | 1-11.5 | 41 | 55.1 | 41.4 | 21.5 | 16F-FRTN | |||
| 28/30/32 | 1 1/4 | 1 5/8 -12 | 1 1/4-11.5 | 48 | 59.2 | 43.2 | 27.5 | 20F-FRTN | |||
 |
