5 Valve Manifolds

Another range of 5 Valve Manifold valve offer by us is Tee Type across country. Manufactured with high quality raw material these valves are tested with all pneumatic and hydrostatic shell testing at pur advanced facility. These valves come in the size of ¼” & ½” with a work pressure of 6000 Psi. Our range of Tee Type is widely used in refineries, gas processing plant and other related petrochemical plants etc. These Tee Type can be fabricated as per the specification by the client.

Straight Type

Tee Type

H Type

Manifolds Valves »5 Valve Manifolds » Tee Type

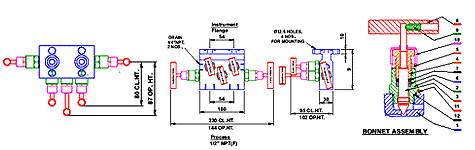

Tee Type
NO	DESCRIPTION	QTY	MATERIAL
1	BODY	1	SS 316
2	BONNET	1	SS 316
3	STEM	1	SS 316
4	BONNET PUSHER	1	SS 316
5	LOCK NUT	1	SS 316
6	PACKING	1	PTFE
7	WASHER	1	SS 316
8	HANDLE	1	SS 304
9	GRUB SCREW	1	SS
10	DUST CAP	1	PLASTIC
11	LOCKING PIN	1	SS 304
12	BONNET SEAL	1	PTFE

FEATURES :

5 VALVE MANIFOLD (TEE TYPE)

5 valve manifolds are designed for direct mounting. Connecting from process side 1/2" NPT(F) and Instrument side flange connection on suitable for DP Transmitter. Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy block or Isolate, two Equaliser, one Bleed or Vent valve calibration of a static pressure transmitter or gauge.
Bleed/vent connection with s.s. plug will be provided on request.
Approximate weight : 1.00 Kg (2.2 Lbs.).
Heat code traceability

BONNET ASSEMBLY

- Screwed bonnet design. - Bonnet-back seated blow out proof.
Spindle - Ground and thread rolled.
Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
Dust cap protects stem threads from externals contamination.
Leak tight seal with low operating torque.

TECHNICAL SPECFICATIONS

Size :	1/4", 1/2"
End connection :	NPT,BSPT,Socket weld.
Working Pressure :	6000 Psi (413 Bar)
Temperature Rating :	PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F (371 Deg. C)
Material of construction :	SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
Stem packing :	PTFE, Grafoil.
Orifice :	Dia. 4.0
All valves are 100% Factory tested prior to shipment.

APPLICATIONS

Refineries, liquid patroleum gas processing plant, petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.

MANIFOLD SELECTION INFORMATION DATA

Pressure & temperature ratings are selected from ANSI B 16.34 for standard class 2500.

TESTING

Pneumatic Seat test is performed at 1/4 of working pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure.
Optional test are available upon request.

LUBRICATIONS

Dye molly sulphide.
