Flareless Tube Fittings »Tee Fittings » Swivel Tee

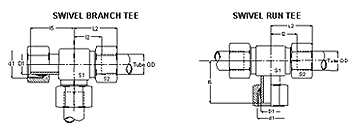

Swivel Tee
SERIES			TUBE OD.	S1	S2	L2	I2	I5	D1	d1	PART NO.
METRIC SIZE TUBE	L	250 Kg/cm2	6	12	14	27	12	26	6	M12 X 1.5	SwBT6L
			8	14	17	29	14	27.5	8	M14 X 1.5	SwBT8L
			10	17	19	30	15	29	10	M16 X 1.5	SwBT10L
			12	19	22	32	17	29.5	12	M18 X 1.5	SwBT12L
			15	22	27	36	21	32.5	15	M22 X 1.5	SwBT15L
		160 Kg/cm2	18	27	32	40	23.5	35.5	18	M26 X 1.5	SwBT18L
		160 Kg/cm2	22	30	36	44	27.5	38.5	22	M30 X 2	SwBT22L
		100 Kg/cm2	28	36	41	47	30.5	41.5	28	M36 X 2	SwBT28L
			35	46	50	56	34.5	51	35	M45 X 2	SwBT35L
			42	55	60	63	40	56	42	M52 X 2	SwBT42L
	H	630 Kg/cm2	6	14	17	31	16	27	6	M14 X 1.5	SwBT6L
			8	17	19	32	17	27.5	8	M16 X 1.5	SwBT8L
			10	19	22	34	17.5	30	10	M18 X 1.5	SwBT10L
			12	22	24	38	21.5	31	12	M20 X 1.5	SwBT12L
			14	22	27	40	22	34.5	14	M22 X 1.5	SwBT14L
		400 Kg/cm2	16	24	30	43	24.5	36.5	16	M24 X 1.5	SwBT16L
			20	30	36	48	26.5	44.5	20	M30 X 2	SwBT20L
			25	36	46	54	30	50	25	M36 X 2	SwBT25L
		250 Kg/cm2	30	44	50	62	35.5	55	30	M42 X 2	SwBT30L
		250 Kg/cm2	38	55	60	72	41	63	38	M52 x 2	SwBT38L

» Request a Quote

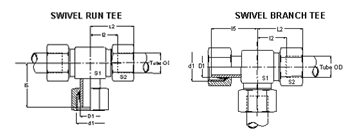

Swivel Tee
SERIES		TUBE OD.	S1	S2	L2	I2	I5	D1	d1	PART NO.
INCH SI ZE OD TUBE	6000 PSI	1/4"	0.55	0.67	1.26	0.62	1.06	1/4"	M14 X 1.5	4SwBT
		3/8"	0.66	0.75	1.22	0.59	1.12	3/8"	M16 X 1.5	6SwBT
		1/2"	0.87	0.94	1.49	0.82	1.25	1/2"	M20 X 1.5	8SwBT
		3/4"	1.06	1.25	1.87	1.04	1.53	3/4"	M27 X 1.5	12SwBT
		1"	1.42	1.75	2.12	1.18	1.92	1"	M36 X 2	16SwBT
	3000 PSI	1 1/4"	1.73	1.97	2.44	1.38	2.16	1 1/4"	M42 X 2	20SwBT
	3000 PSI	1 1/2"	2.16	2.36	2.79	1.57	2.48	1 1/2"	M52 x 2	24SwBT
	2000 PSI	2"	2.5	2.75	3.07	1.91	3.11	2"	M60 X 2	32SwBT

» Request a Quote
