Tee Fittings
We offer our customers Male Tee Parallel, which is useful for work related to power, a/c, & oil and related industries to suit the demand of the clients of varied nature. Specified Male Tees Parallel in MALE STUD TEE (STUD END PARALLEL THREAD) are available with us in different shape, sizes, series & parts to select from.
| Male Tee Parallel | Swivel Tee | Male Tee Taper | Union Tee |
|
Flareless Tube Fittings »Tee Fittings » Male Tee Parallel |

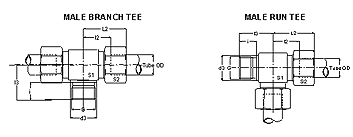

MALE STUD TEE (STUD END PARALLEL THREAD) |
|||||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | BSP THREAD | |||||
| G | PART NO. | ||||||||||||
| METRIC SIZE TUBE | L | 160 Kg/cm2 | 22 | 32 | 36 | 44 | 27.5 | 42 | 16 | 3/4" | MBT22L-G12 | ||
| 100 Kg/cm2 | 28 | 41 | 41 | 47 | 30.5 | 48 | 18 | 1" | MBT28L-G16 | ||||
| 35 | 50 | 50 | 56 | 34.5 | 54 | 20 | 1 1/4" | MBT35L-G20 | |||||
| 42 | 55 | 60 | 63 | 40 | 61 | 22 | 1 1/2" | MBT42L-G24 | |||||
| H | 400 Kg/cm2 | 20 | 32 | 36 | 48 | 26.5 | 42 | 16 | 3/4" | MBT20H-G12 | |||
| 25 | 41 | 46 | 54 | 30 | 48 | 18 | 1" | MBT25H-G16 | |||||
| 250 Kg/cm2 | 30 | 50 | 50 | 62 | 35.5 | 54 | 20 | 1 1/4" | MBT30H-G20 | ||||
| 38 | 55 | 60 | 72 | 41 | 61 | 22 | 1 1/2" | MBT38H-G24 | |||||
| NOTE: The part numbers given here are for Parallel Male Branch Tee.Corresponding part numbers for Parallel Male Run Tee can be obtained by substituting ‘MRT’ for ‘MBT’. | |||||||||||||
 |

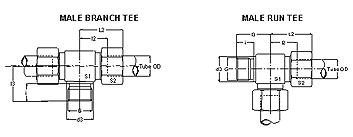

MALE STUD TEE (STUD END PARALLEL THREAD) |
|||||||||||
