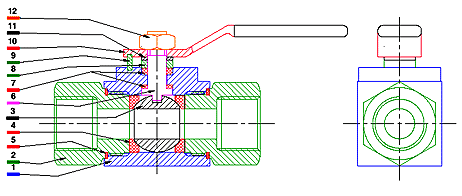

| High Pressure Ball Valve | |||||||||||
| NO | DESCRIPTION | QTY | MATERIAL | ||||||||
| 1 | BODY | 1 | SS 316 | ||||||||
| 2 | END CONNECTOR | 2 | SS 316 | ||||||||
| 3 | BALL | 1 | SS 316 | ||||||||
| 4 | STEM | 1 | SS 316 | ||||||||
| 5 | BALL SEAT | 2 | PTFE | ||||||||
| 6 | CONNECTOR SEAL | 2 | PTFE | ||||||||
| 7 | STEM SEAL | 2 | PTFE | ||||||||
| 8 | STEM WASHER | 1 | SS 316 | ||||||||
| 9 | LOCK PIN | 1 | SS 304 | ||||||||
| 10 | HANDLE | 1 | SS 304 | ||||||||
| 11 | SPRING WASHER | 1 | SS 304 | ||||||||
| 12 | LOCK NUT | 1 | SS 304 | ||||||||
| SPECIFICATIONS : | ||
| Size | 1/4" to 1" | |
| End ports | BSP, NPT, BSPT, Flange End, ODT | |
| Max. Std. Pressure | 6000 Psi (413 Bar) | |
| Temperature Rating | PTFE 450° F (232°C) Grafoil 700° F (371° C) | |
| Material | SS 316, SS 304, C.S., Hastelloy, Monel | |
| Ball Seat | PTFE, Delrin | |
| Panel mount option | All valves are 100% Factory tested prior to shipment. | |
 |
