2 Valve Manifolds

We offer various range of 2 Valve Manifolds, which includes H Type to our clients. This product is manufactured by using brass and highly durable steel for long life and rust free operation and use dye molly sulphide as a lubricant. This product comes with a feature of a threaded inlet and flanged outlet, allowing the transmitter to bolt directly to the manifold. This unique design concept results in easy installation and allows a technician to remove the transmitter without disassembling the associated piping.

 Straight Type Tee Type H Type


Manifolds Valves »2 Valve Manifolds » H Type
Male Connector

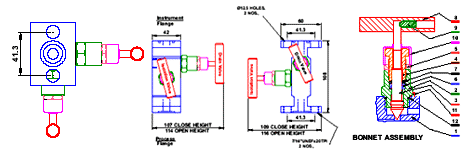

H Type

NO DESCRIPTION QTY MATERIAL
1 BODY 1 SS 316
2 BONNET 1 SS 316
3 STEM 1 SS 316
4 BONNET PUSHER 1 SS 316
5 LOCK NUT 1 SS 316
6 PACKING 1 PTFE
7 WASHER 1 SS 316
8 HANDLE 1 SS 304

9 GRUB SCREW 1 SS
10 DUST CAP 1 PLASTIC
11 LOCKING PIN 1 SS 304
12 BONNET SEAL 1 PTFE

FEATURES :
2 VALVE MANIFOLDS (H TYPE)
  • 2 valve manifolds are designed for direct mounting. Connecting from process side Flange connection and Instrument side Flange connection on suitable for DP transmitter. Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or Isolate, Bleed or Vent valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability
BONNET ASSEMBLY
  • Screwed bonnet design.
  • Bonnet-back seated blow out proof. - Spindle
  • Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
  • Dust cap protects stem threads from externals contamination.
  • Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS
Size : 1/4", 1/2"
End connection : NPT,BSPT,Socket weld.
Working Pressure: 6000 Psi (413 Bar)
Temperature Rating : PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F (371 Deg. C)
Material of construction : SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
Stem packing : PTFE, Grafoil.
Orifice : Dia. 4.0
All valves are 100% Factory tested prior to shipment.

APPLICATIONS
Refineries, liquid patroleum gas processing plant, petro-chemical plants, systems difficult to shur off due to solid contents dust,rust, dirt etc.

MANIFOLDS SELECTION INFORMATION DATA
Pressure & temperature ratings are selected from ANSI B 16.34 for standard class 2500.


TESTING
  • Pneumatic Seat test is performed at 1/4 of working pressure.
  • Hydrostatic shell test is performed at 1.5 times the working pressure.
  • Optional test are available upon request.
LUBRICATIONS
Dye molly sulphide.
