5 Valve Manifolds

We offer a range of premium quality Straight Type 5 Valve Manifolds to our clients. Made from steel and brass these valves are highly durable and long lasting with rust free performance. This Five Valve Manifold combines two shutoff valves, two equalizing valves, and a vent/calibration valve into a single, compact assembly. The double equalizing arrangement ensures against measurement error that can occur from equalizer leakage between high and low pressure connections, making it ideal for custody transfer applications.

 Straight Type Tee Type H Type


Manifolds Valves »5 Valve Manifolds » Straight Type
Male Connector

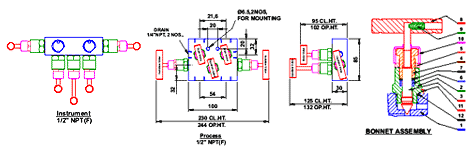

Straight Type

NODESCRIPTIONQTYMATERIAL
1BODY1SS 316
2BONNET1SS 316
3STEM1SS 316
4BONNET PUSHER1SS 316
5LOCK NUT1SS 316
6PACKING1PTFE
7WASHER1SS 316
8HANDLE1SS 304
9GRUB SCREW1SS
10DUST CAP1PLASTIC
11LOCKING PIN1SS 304
12BONNET SEAL1PTFE

FEATURES :
5 VALVE MANIFOLD (STRAIGHT TYPE)
  • 5 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy two block or Isolate, two, one Bleed or Vent valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability
BONNET ASSEMBLY
  • Screwed bonnet design.
  • Bonnet-back seated blow out proof. - Spindle - Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life
  • Dust cap protects stem threads from externals contamination.
  • Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS
