2 Valve Manifolds

A Straight Type Valve is a range of line mounted 2 Valve Manifolds, which finds wide application for remote or separate mounting. These valves are made from high quality steel and brass. Compared to conventional piping methods that use an arrangement of nipples, pipes, elbows and tees and gate valves. Our range of product provide low cost, easy installable unit and performs the same functions as traditionally performed by piping components. This valve manifolds find wide application in refineries, liquid petroleum gas processing plant etc.

 Straight Type Tee Type H Type


Manifolds Valves »2 Valve Manifolds » Straight Type
Male Connector

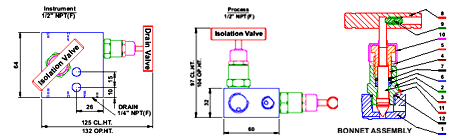

Straight Type

NODESCRIPTIONQTYMATERIAL
1BODY1SS 316
2BONNET1SS 316
3STEM1SS 316
4BONNET PUSHER1SS316
5LOCK NUT1SS 316
6PACKING1PTFE
7WASHER1SS 316
8 HANDLE1SS
304
9GRUB SCREW1SS
10DUST CAP1PLASTIC
11 LOCKING PIN1SS 304
12BONNET SEAL1PTFE

FEATURES :
2 VALVE MANIFOLDS (STRAIGHT TYPE)

  • 2 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or Isolate, Bleed or Vent valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : 0.95 Kg (2.1 Lbs.).
  • Heat code traceability
BONNET ASSEMBLY
  • Screwed bonnet design.
  • Bonnet-back seated blow out proof.
  • Spindle-Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited,Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for
    increased stem cycle life.
  • Dust cap protects stem threads from externals contamination.

  • Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS
Size :1/4", 1/2"
End connection :NPT,BSPT,Socket weld.
Working Pressure :6000 Psi (413 Bar)
Temperature Rating :PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F(371 Deg. C)
Material of construction :SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR -
01 - 75
Stem packing : PTFE, Grafoil.
Orifice : Dia. 4.0
All valves are 100% Factory tested prior to shipment.

APPLICATIONS
Refineries,liquid patroleum gas processing plant,petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.

MANIFOLDS SELECTION INFORMATION DATA
Pressure &2500

TESTING
  • Pneumatic Seat test is performed at 1/4 of working pressure.
  • Hydrostatic shell test is performed at 1.5 times the working pressure.
  • Optional test are available upon request.
LUBRICATIONS
Dye Molly Sulphide.
