3 Valve Manifolds

Another range of a 3 Valve Manifolds is H type manufactured by us for our clients. Manufactured from high tensile strength steel and brass this valve is designed for direct mounting. This product is widely used in various types of refineries, petroleum gas and chemical processing plant etc. All the products are pressure tested at our state of the art facility. Our range of products is available at industry leading price.

 Straight Type Tee Type H Type


Manifolds Valves »3 Valve Manifolds » H Type
Male Connector

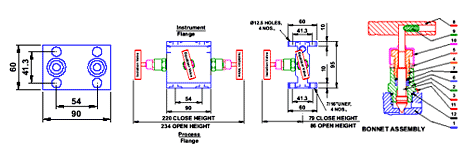

H Type

NODESCRIPTIONQTYMATERIAL
1BODY1SS 316
2BONNET1SS 316
3STEM1SS 316
4BONNET PUSHER1SS 316
5LOCK NUT1SS 316
6PACKING1PTFE
7WASHER1SS 316
8HANDLE1SS 304
9GRUB SCREW1SS
10DUST CAP1PLASTIC
11LOCKING PIN1SS 304
12BONNET SEAL1PTFE

FEATURES :
3 VALVE MANIFOLDS (H TYPE)
  • 3 valve manifolds are designed for direct mounting. Connecting from process Flange connection on suitable for process.Instrument side Flange connection on suitable for DP Transmitter. Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or Isolate, one Equaliser valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability
BONNET ASSEMBLY
  • Screwed bonnet design.
  • Bonnet-back seated blow out proof. - Spindle - Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
  • Dust cap protects stem threads from externals contamination.
  • Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS
Size :1/4", 1/2"
End connection :NPT,BSPT,Socket weld.
Working Pressure :6000 Psi (413 Bar)
Temperature Rating : PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F (371 Deg. C)
Material of onstruction :SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
Stem packing :PTFE, Grafoil.
Orifice : Dia. 4.0
All valves are 100% Factory tested prior to shipment.

APPLICATIONS
Refineries, liquid patroleum gas processing plant, petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.

MANIFOLDS SELECTION INFORMATION DATA
Pressure & temperature ratings are selected from ANSI B 16.34 for standard class 2500

TESTING
  • Pneumatic Seat test is performed at 1/4 of working pressure.
  • Hydrostatic shell test is performed at 1.5 times the working pressure.
  • Optional test are available upon request.
LUBRICATIONS
Dye molly sulphide
