3 Valve Manifolds

We are the leading manufacturer and supplier of Tee Type 3 Valve Manifolds. For direct mounting, we have designed these Tee type range for our clients. This is manufactured with high quality raw material and the connections are 1/2" NPT on industry standard 3-2/8" center-to-center dimensions. This product is available at economical price and can be customized as per the requirement of the client.

Straight Type

Tee Type

H Type

Manifolds Valves »3 Valve Manifolds » Tee Type

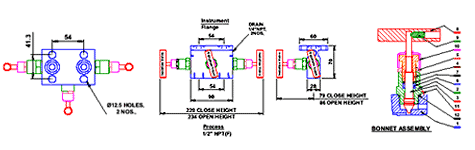

Tee Type
NO	DESCRIPTION	QTY	MATERIAL
1	BODY	1	SS 316
2	BONNET	1	SS 316
3	STEM	1	SS 316
4	BONNET PUSHER	1	SS 316
5	LOCK NUT	1	SS 316
6	PACKING	1	PTFE
7	WASHER	1	SS 316
8	HANDLE	1	SS 304
9	GRUB SCREW	1	SS
10	DUST CAP	1	PLASTIC
11	LOCKING PIN	1	SS 304
12	BONNET SEAL	1	PTFE

FEATURES :

3 VALVE MANIFOLD (TEE TYPE)

3 valve manifolds are designed for direct mounting. Connecting from process side 1/2" NPT(F) and Instrument side Flange connection on suitable for DP Transmitter. Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or Isolate, one Equaliser valve calibration of a static pressure transmitter or gauge.
Bleed/vent connection with s.s. plug will be provided on request.
Approximate weight : xxx Kg (xxx Lbs.).
Heat code traceability

BONNET ASSEMBLY

Screwed bonnet design.
Bonnet-back seated blow out proof. - Spindle - Ground and thread rolled.
Spindle tip-Non rotating tip shut off type - stellited,Regulating-stellited and soft seated.
Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
Dust cap protects stem threads from externals contamination.
Leak tight seal with low operating torque.

TECHNICAL SPECFICATIONS

Size :	1/4", 1/2"
End connection :	NPT,BSPT,Socket weld.
Working Pressure :	6000 Psi (413 Bar)
Temperature Rating :	PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F (371 Deg. C)
Material of construction :	SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
Stem packing :	PTFE, Grafoil.
Orifice :	Dia. 4.0
All valves are 100% Factory tested prior to shipment.

APPLICATIONS

Refineries, liquid patroleum gas processing plant, petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.

MANIFOLD SELECTION INFORMATION DATA

Pressure & temperature ratings are selected from ANSI B 16.34 for standard class 2500

TESTING

Pneumatic Seat test is performed at 1/4 of working pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure.
Optional test are available upon request.

LUBRICATIONS

Dye molly sulphide.
